BORDEN RADIO COMPANY WWW.XTALMAN.COM

*****************************************
  BUY A FULL SET AND SAVE MONEY!

A full set of ALL of my ELECTRONICS HANDBOOK Article Reprints for $35.00. This is a savings of $10.60 off the individual purchase prices.


******************************************







REPRINTS OF PROJECT ARTICLES!


arm1



High quality photocopies of vintage style project construction articles written by Lance S. Borden, WB5REX

These articles originally appeared in ELECTRONICS HANDBOOK Magazine which is no longer being published. They are not available anywhere else at this time.





  **Click on images for a different view**

*******************************************



Build A High Performance Crystal Set

Xtal

How To Build And Use A High Performance Crystal Set

Everything you need to know to build a sensitive, selective A.M. & Short Wave crystal set. You can actually hear foreign short wave broadcasts from all over the world with this set. On A.M. it is selective and sensitive enough to separate strong stations in an urban area and to pull in A.M. DX at night. I designed this set with the beginner in mind, and yet was still  able to retain the sensitive and selective double-tuned crystal set circuit features  that have been proven so effective on many more complex and expensive  sets over the years.  I bent over backwards to write the easiest to understand construction procedure possible. I use the simplest construction techniques and easy to obtain parts and materials. I tell you where to get all of the parts and provide a list of suppliers for the crystal detector and air variable tuning capacitors. I actually took my tuning capacitors out of some old junker radios. They work as good as the ones that you can buy.

7 Pages          6 Photographs          5 Drawings

$4.95

*****************************************

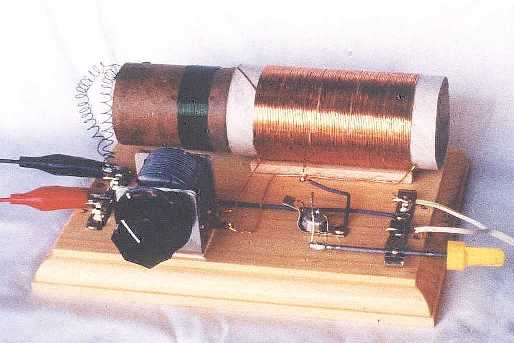

Build A Loose Coupler Crystal Set

loose

Build A Selective Loose Coupler Crystal Set

An easy-to-build example of the loose coupler that was the mainstay of wireless stations onboard ships and on-shore all over the world in the early days of spark and crystal detectors. The loose coupler allows you to adjust the selectivity of the circuit, thus making it easy to separate stations in crowded urban areas. This article was to be published in Volume 20 of ELECTRONICS HANDBOOK Magazine. The publisher never printed this volume. High quality copies of this article are made from the original manuscript , drawings, and photographs.

10 Pages          10 Photographs          7 Drawings

$5.95

****************************************







Build A Crystal Set QRM Rejector

qrm

Build A QRM Filter For Crystal Sets

A simple circuit that effectively removes strong, loud stations so you can hear the weaker DX stations with a crystal set or one-tube set. I live in Houston, Texas. There are many very strong A.M. Broadcast stations near my home. I have used as many as five of these QRM filters connected in series with the antenna.  With this set up I have been able to tune out five strong stations and could then hear weak DX stations hundreds of miles away at night with my crystal set and a good pair of headphones. This project uses simple construction methods and easily obtainable parts and materials.

5 Pages          9 Photographs          6 Drawings

$4.95

*****************************************



Build A Crystal Set Antenna Tuner

Tuner1

Build A Crystal Set Antenna Tuner

An antenna tuner maximizes the efficiency of your antenna system. It will increase the signal strength and volume of any crystal set, or one-tube set. This one is simple to build using readily obtainable materials. I listed the sources of parts for this tuner. The air variable tuning capacitors are the hardest part to locate. I give you several sources for these capacitors.

8 Pages          8 Photographs          13 Drawings

$5.95


*****************************************

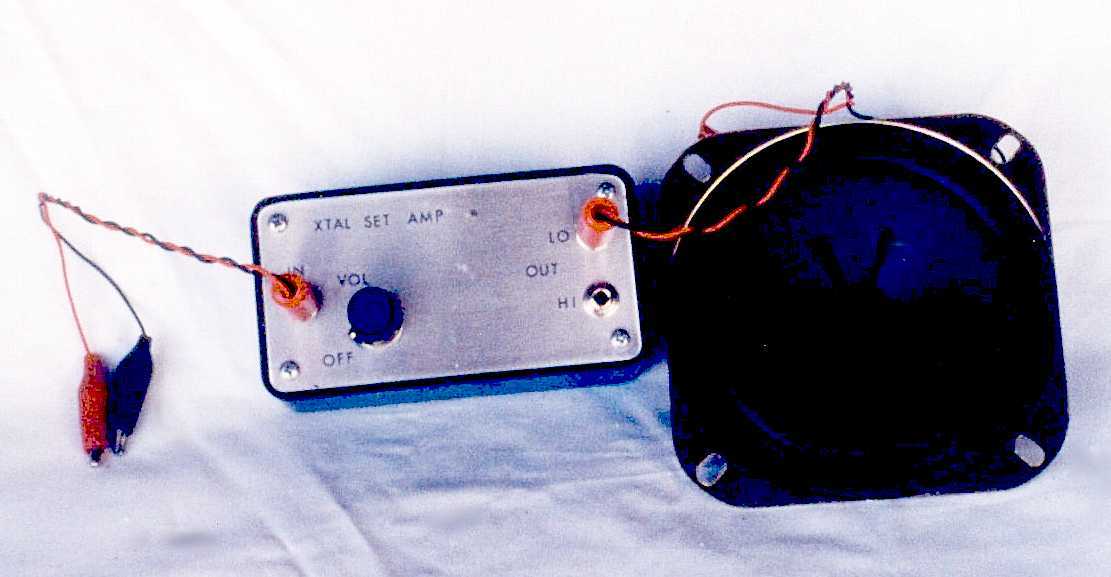

Build A Crystal Set Amplifier

amp

Build A Crystal Set Audio Amplifier

This easy-to-build amplifier is made from parts that you can get at Radio Shack.  To make it easier, I even list the Radio Shack part numbers where it is appropriate. This powerful little integrated circuit amp allows you to play your crystal set, or one-tube set, through a loudspeaker at room volume.  It uses an efficient high impedance input circuit that will not load down the crystal set's tuned circuit. This allows it to operate at top efficiency and enhances the "Q", or selectivity and sensitivity of the crystal set. Output power is up to 1 watt. This is plenty of power to be uncomfortably loud at full volume on a strong station and to allow you to hear weak DX stations that would be inaudible with even the most sensitive headsets.  It is powered by a standard 9 volt battery.

9 Pages         11 Photographs          4 Drawings

$5.95

*****************************************



Build A World War II Fox Hole Radio

Foxhole

Build A World War II Fox Hole Radio

Duplicate the little razor blade radios that the GIs used in their fox holes to listen to the Armed Forces Radio Service and Axis Sally during World War II. This article describes the construction of two different razor blade radios. One is the simple set that most of the GIs built. The second one is a �Souped-up� version that uses a better tuned-circuit and a bias battery to optimize the performance of the razor blade detector.

12 Pages          11 Photographs          12 Drawings

 $5.95

*****************************************

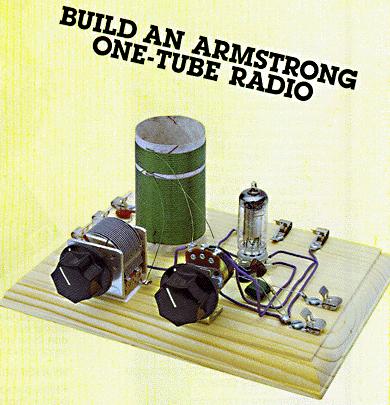

Build An Armstrong One Tube Set

armstrong

Build An Armstrong One-Tube Radio

A "Hot" little one-tube set that uses Edwin Howard Armstrong's Regenerative circuit. This set has been built by hundreds of readers.   Readers have reported great DX reception on the AM Broadcast band!

10 Pages          11 Photographs          5 Drawings

$5.95

*****************************************

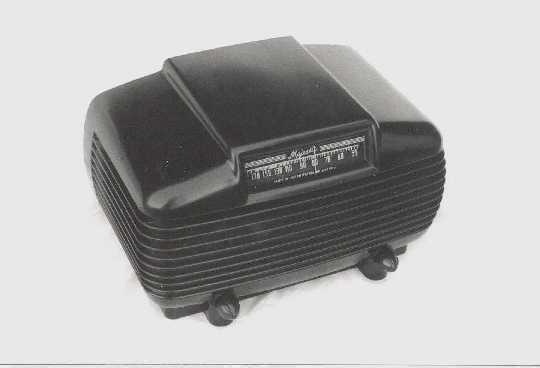

Restore An All-American 5-Tube AC/DC Superhet Radio

5tube

Restore An All-American Five-Tube AC-DC Superhet Radio

Everything you need to know to restore an All-American AC-DC radio. This is a very detailed explanation written with the beginner in mind. It tells you how to test tubes with a multimeter and how to repair cracked Bakelite. This article has been called by one reader:  "The authority on this subject."

13 Pages          19 Photographs          8 Drawings

$5.95

*****************************************

All Borden Radio Company products are sold plus U.S. Priority or First Class shipping according to your Zip Code plus $2.00 handling in USA. Please email us your address for the cost of Priority shipping.

(outside U.S.A. please email for shipping cost)



How To Order

1. For Mail Orders: Email us and tell us what you want to order and we will reply with your total including shipping and our mailing address.

2. For Credit Cards: Email us and tell us what you want to order and your address. We will reply with your total including shipping & handling. Then click on the PayPal logo below and follow their simple instructions for sending money. You will need our PayPal address. Our PayPal address is wb5rex@earthlink.net
